Statut
vendu
référence interne
OCC0625099
Statut
vendu
Etat
Révisé / reconditionné et CE

Sur commande la machine sera révisée, mise en conformité, avec contrôle et essai fonctionnel dynamique.

Avec une garantie 3 mois & attestation de mise aux normes.

Prix HT départ magasin. Livraison et prestations complémentaires sur demande.

Vous l'avez manqué !? Nous restons à votre écoute

Machine révisée sur commande. Mise en conformité (avec attestation) et Garantie 3 Mois

Prix HT départ magasin, Transport et prestations sur demande.

Quantité

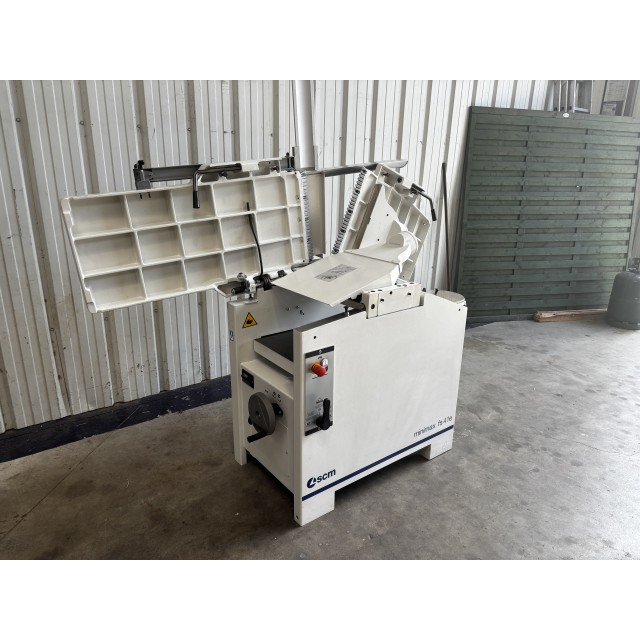

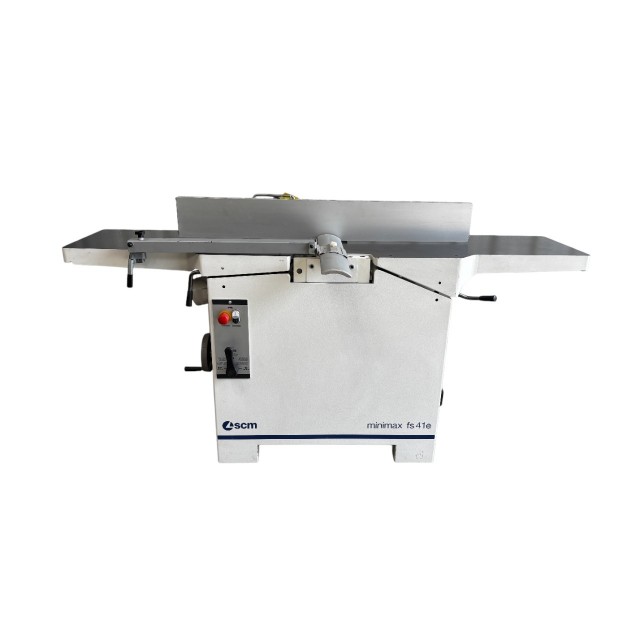

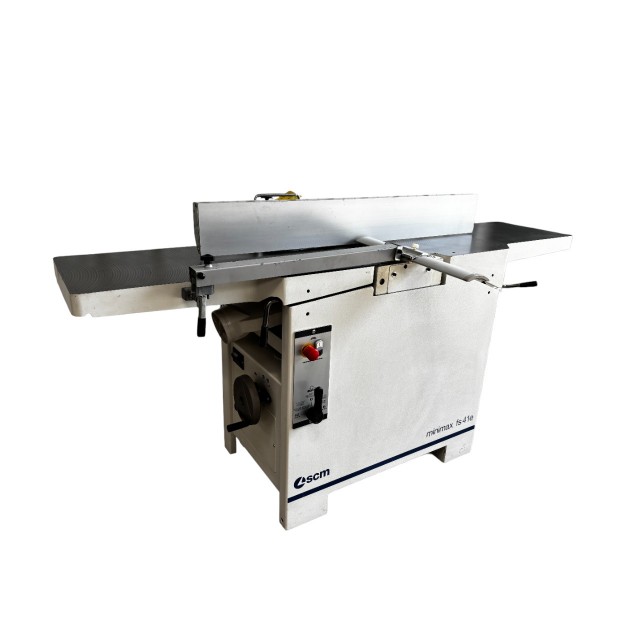

DÉGAUCHISSEUSE RABOTEUSE

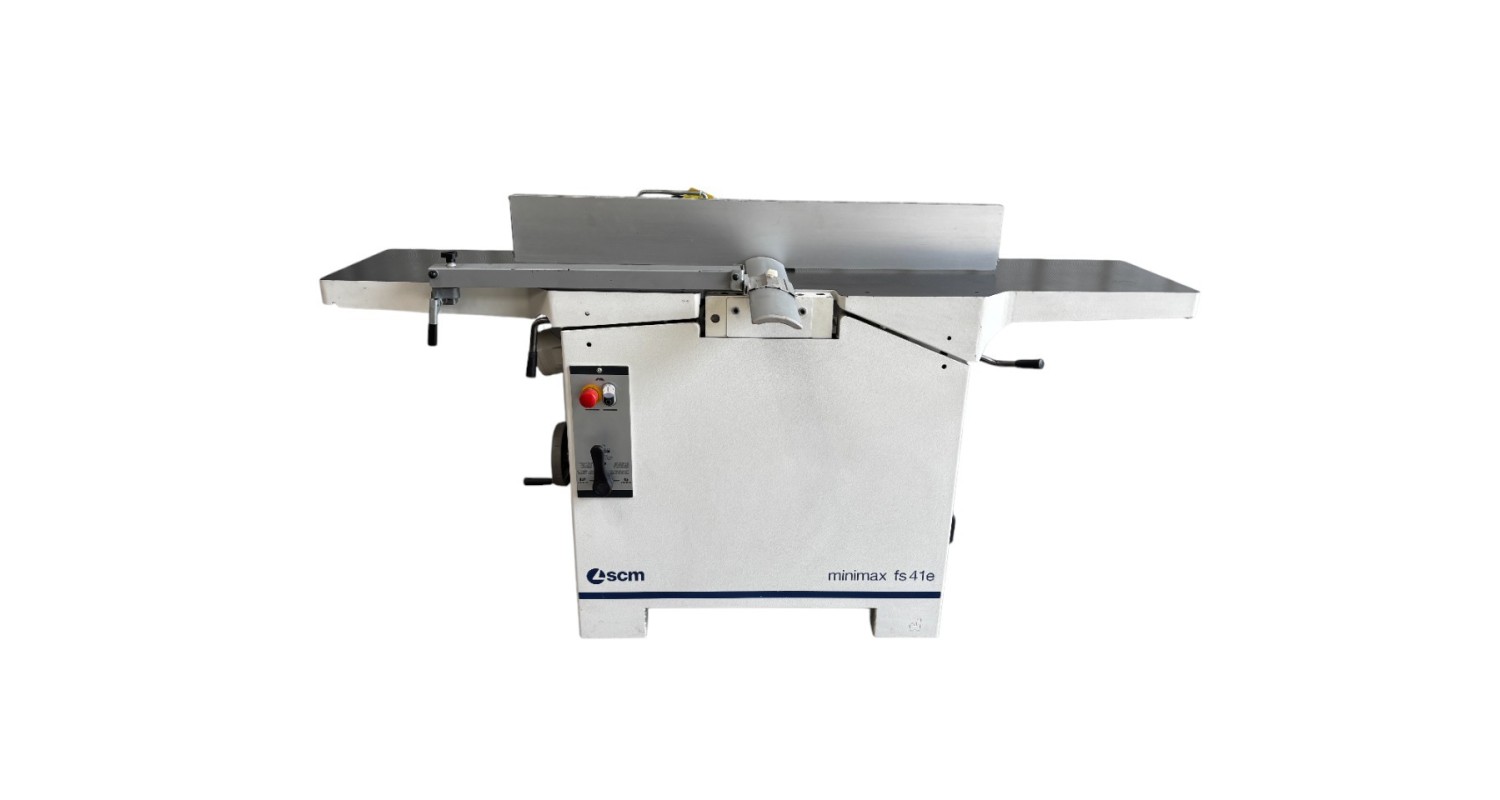

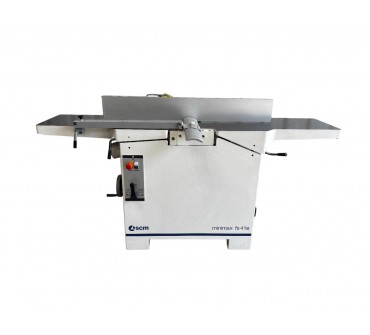

Marque : SCM  Modèle : MINIMAX FS41E

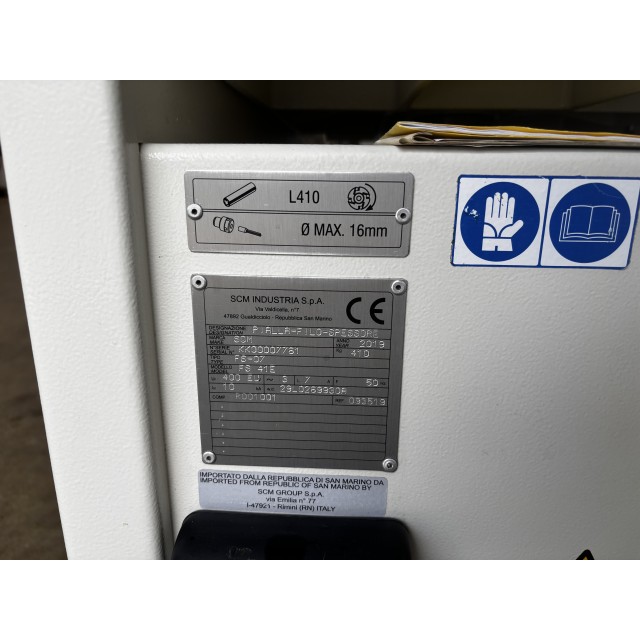

N° de série : KK0007761  Réf : 093519  Année : 2019
(Photos prises avant révision, essais fonctionnels et nettoyage)

CAPACITÉS D'USINAGE :

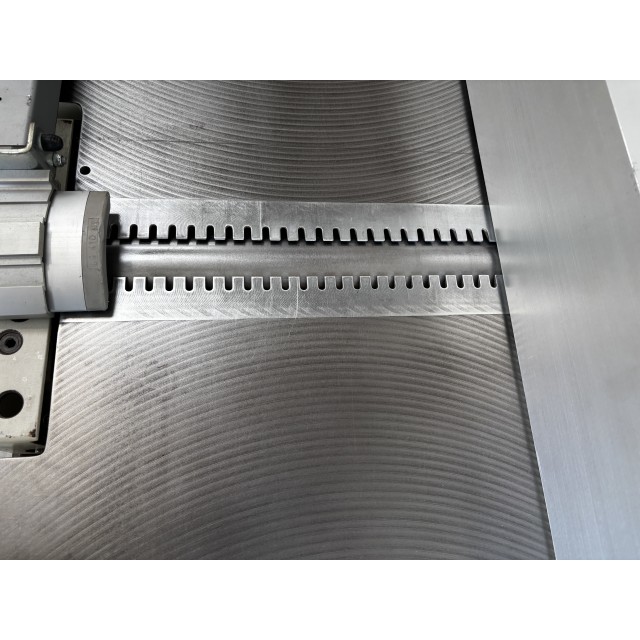

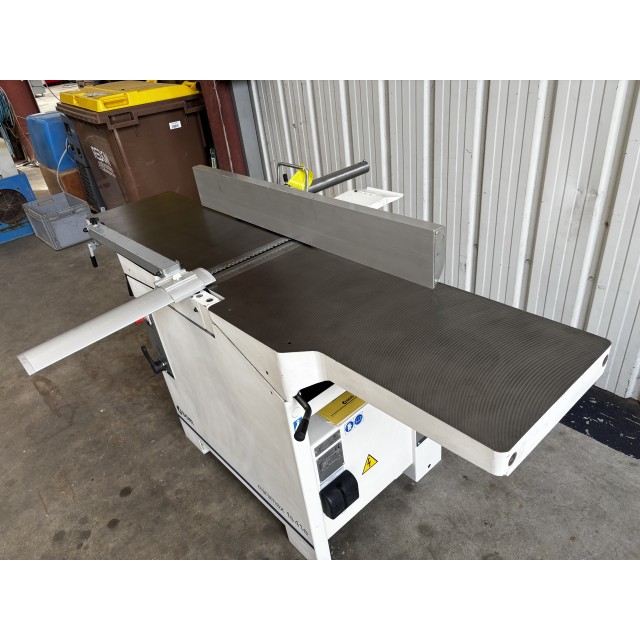

Dégauchisseuse :
- Largeur utile de travail : 410 mm
- Plan de travail en fonte Longueur 2000 mm
  Table d'entrée : 530x985 mm
  Table de sortie : 530x985 mm
  Lèvres anti-bruit
- Hauteur du plan de travail : 900 mm

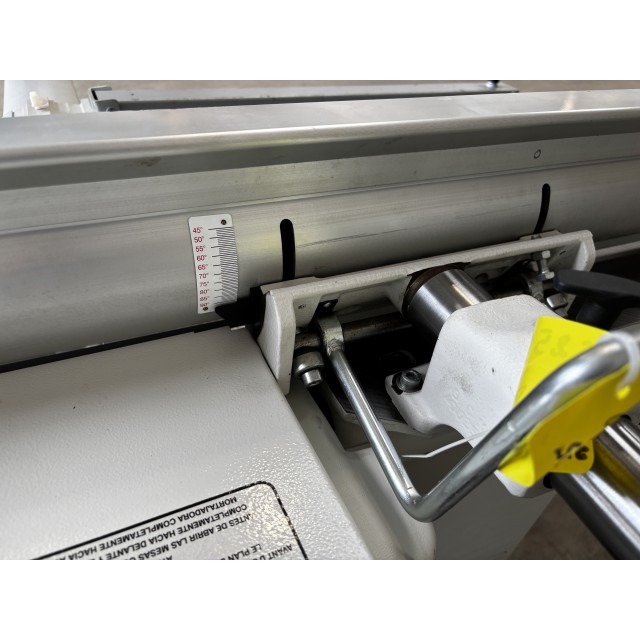

- Guide inclinable
- Prise de passe max : 5 mm
- Vitesse de l'arbre : 5000 t/min

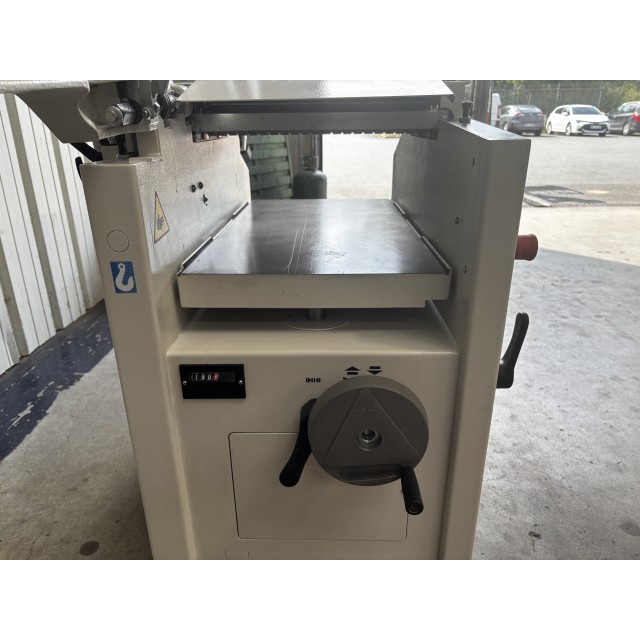

Raboteuse :
- Section de bois maxi (ép. x Larg.) : 230x410 mm
- Longueur minimum de travail : 160 mm
- Table en fonte (Lxl) : 775x410 mm
- Positionnement manuel

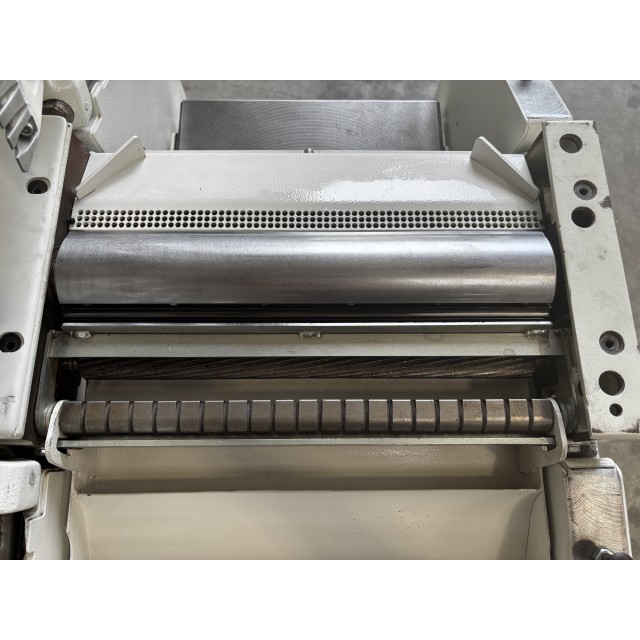

- Rouleaux presseurs d'entrainements hélicoïdal en entrée et lisse en sortie
- Vitesse d'entrainement : 6 et 12 m/min
AUTRES CARACTERISTIQUES :
- Alimentation électrique : 380 V. Triphasé 50 Hz
- Démarrage étoile triangle auto
- Moteur : 4 kW ( 5.5 cv)
- Arbre : Ø85x410 mm
- 3 Couteaux : 410x30x3 mm
- Bouches d'aspiration : Ø120 mm
- Marquage CE

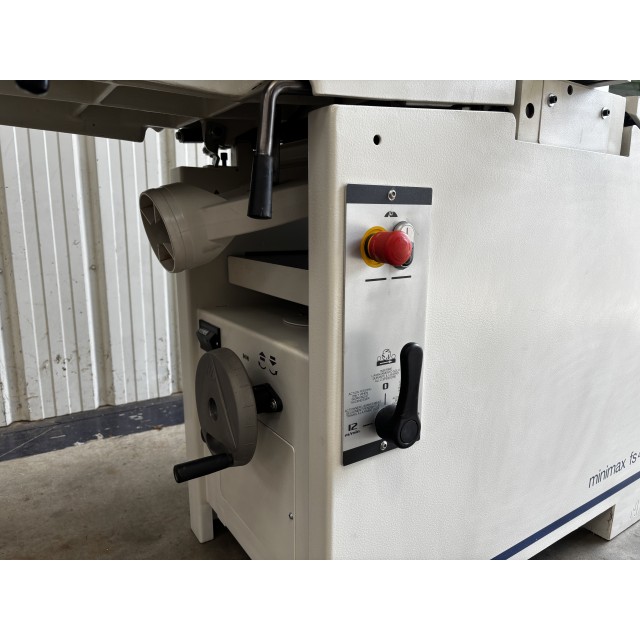

- Sectionneur cadenassable, arrêts coup de poing

Encombrement (LxPxH) : 2000x700x1350 h. mm
Poids : 410 kg

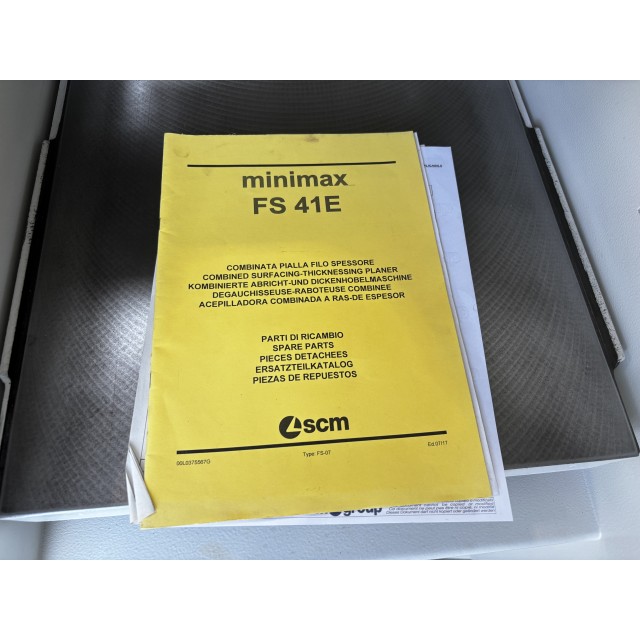

Machine fournie avec fers affutés montés, manuel d'utilisation, schémas et liste de pièces détachées
Nous vous invitons à nous consulter pour la fourniture des consommables, accessoires et/ou systèmes d’aspiration.
